There are two Internet Protocol (ip) cameras for viewing our religious services and other events remotely.

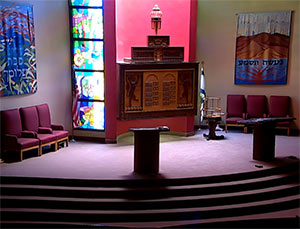

Sanctuarysocialhall-cam

Camera Model: Foscam FI9826W
Image type: H264 (1280×960)
ip address: bnaitikvah.dlinkddns.com
Port: 88

Web URL: http://bnaitikvah.dlinkddns.com:88

Note: The HD image is set at 3x optical zoom.

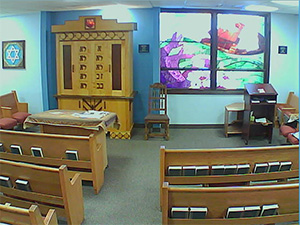

Beit MidrashWebcam85

Camera Model: Foscam FI8910W
Image type: MJPEG (640×480)
ip address: bnaitikvah.dlinkddns.com
Port: 85

Web URL: http://bnaitikvah.dlinkddns.com:85







Via Android or IOS (iPhone, iPad)


There are many good apps for viewing and/or recording from our internet cameras. Most of the free apps have annoyances that prevent you from listening or viewing the entire screen unless you purchase the full version.


Depending on the app, you’ll need some, if not all, of the following settings:




  • ip address: bnaitikvah.dlinkddns.com
    •

  • user: *note
    •

  • password: *note
    •

  • stream type: substream (recommended), main stream (higher resolution)
    •







CAMERA
Sanctuary
Ballroom
Beit Midrash
Gym
Nursery
School




Model
FI9826W
Fi9826W
FI8910W
FI9821W V2
FI8918W
FI8918W




Type
H264
H264
MJPG
H264
MJPG
MJPG




Port
88
82
85
86
84
83









*note: Contact the synagogue office for user id and password.





Via Windows PC


The webcams are best supported in Windows with the Mozilla Firefox browser. Two plug-ins are required to make it work for the first time. One is provided as a link on the sign-in screen. If you don’t see the video, it’s because you ignored the link to install the plug-in. The second is the VLC Audio plug-in, which you can download and install from VideoLan.org. When logging into the Beit Midrash camera (85), select “ActiveX Mode” for Internet Explorer or “server Push Mode” for Firefox. The Chrome browser is unsupported at this time.





Via Apple Mac


The webcams are supported only in the Safari browser. When prompted, go to system preferences… security… and install the required plug-in. You must completely close and reopen Safari to accept the plug-in. Subsequent uses of the website will operate automatically.

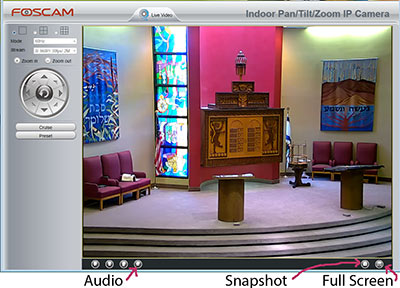

Windows and Mac Browser Controls


There are 6 buttons at the bottom of the screen (left to right):








  • Open Video
    •

  • Close video
    •

  • Open Talk (leave this closed)
    •

  • Open Audio (must be selected to hear audio).
    •

  • Take Snapshot – Opens a still image in a new tab. Right Mouse the image and select “Save Image As…”, select (or note) which folder is open, give it a file name where indicated, and click “Save”. (Works in Firefox only.)
    •

  • Full Screen
    •











camera82-controls


Note: When logged on as an “Administrator” account, there also a button for video recording. The recorded videos will be saved in folder C:\IPCamRecord





For questions or assistance, contact Gary Bergman 732-246-7285.
